IP Outdoor Camera 4MP/MOVE Vandal/MOBOTIX

Internal Notes

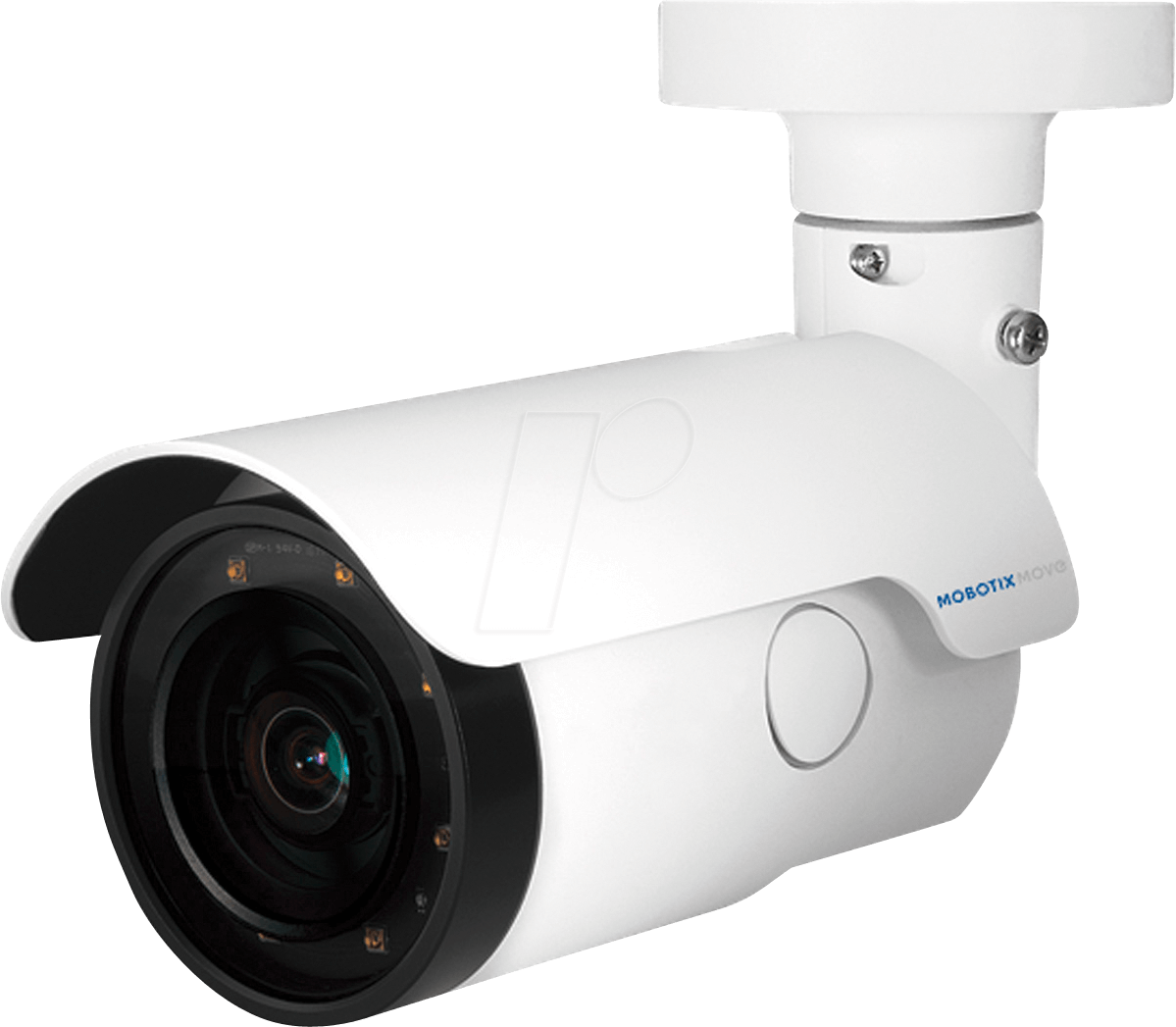

MOBOTIX MOVE VandalBullet
MOBOTIX MOVE Bullet Network Camera VB1A-4-IR-D

The Bullet camera with IK10 vandalism protection
The Mobotix VandalBullet is one of the newest cameras from Mobotix.
It belongs to the popular series of decentralised Mobotix Move cameras.
The VandalBullet has a long range and very good manoeuvrability.
Thanks to its appearance and visibility, it is a double deterrent to potential threats.
According to several studies, burglars and intruders are quickly deterred by visible cameras.
However, as in some cases such threats can also lead to more radical methods, this new Mobotix camera is completely vandalism-proof.
This camera in a “heavy metal housing” is therefore perfectly suited for use in publicly accessible areas where increased vandalism protection is required.

IR blocking filter
Thanks to the new infrared blocking filter, automatic switching between day and night mode is possible.
The camera orients itself to the ambient brightness.
During the day, the mechanically and electrically controlled blocking filter filters the IR component of daylight and thus produces the most realistic color images possible.
At night, on the other hand, the camera switches to black-and-white mode and removes the IR block filter, so you will still get usable images even in very low light.

Adjust the focal length easily from a distance
The Mobotix Move cameras with a 4 megapixel sensor have an electronically – remotely adjustable varifocal lens.
The lens is automatically focused and adapts to changes in focal length.
So you always get pin sharp pictures.
Particularly strong differences in brightness are automatically compensated by means of the high-quality image processing technology Wide Dynamic Range (WDR).

Weatherproof ONVIF S/G bullet camera with integrated IR-LEDs (up to 40 m) for day and night use
Automatic switching from color to b/w image (mechanical IR cut filter)
remote zoom
Motor-driven varifocal lens (F1.6: 9 to 22 mm, angle of view H: 35°-15°, V: 20°-9°) with auto-iris with automatic adaptation to changing light situations

Image sensor:
4MP (2688 x 1512), 1/3″ Progressive CMOS

Protection classes:
IP66
IK10

Ambient temperature
-30 to 60 °C

Air humidity
10 to 90 per cent

Video codecs:
H.264, MJPEG (up to 3 streams simultaneously)

WDR
120 dB

Max. Frame rate:
4MP@30fps (H.264); MJPEG: 1080p@30fps

Power supply:
PoE IEEE 802.3af or DC 12V (2.12 A) or AC 24V; max. 13.68 W
