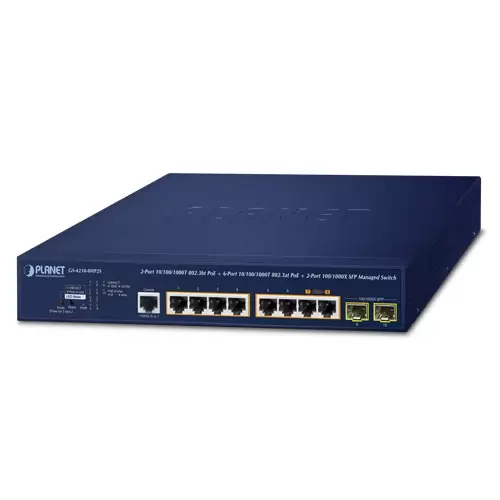

Fiber Switch/2-Port/(10/100/1000T)/802.3bt PoE + 6-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X/SFP/Managed Switch

Internal Notes
Key Features:

Physical Port

– 8-port 10/100/1000BASE-T RJ45 copper with PoE injector function
– 2 100/1000BASE-X mini-GBIC/SFP slots
– RJ45 console interface for switch basic management and setup

Power over Ethernet :

– Complies with IEEE 802.3bt PoE++ and 802.3at PoE+ standard PSE
– Backward compatible with IEEE 802.3af Power over Ethernet
– Selectable PoE mode: End-span/Mid-span/802.3bt/UPoE/Legacy
– Ports 1 to 6 support up to 36 watts
– Ports 7 to 8 support up to 95 watts
– Each PoE port supports 54V DC power to powered device
– 240-watt PoE budget
– Auto detects powered device
– Circuit protection prevents power interference between ports
– Remote power feeding up to 100 meters in standard mode and 250m in extended mode
– PoE management
– Total PoE power budget control
– Per port PoE function enable/disable
– PoE port power feeding priority
– Per PoE port power limitation
– PD classification detection
– PoE extension
– Intelligent PoE features
– PD alive check
– PoE schedule
– Scheduled power recycling
